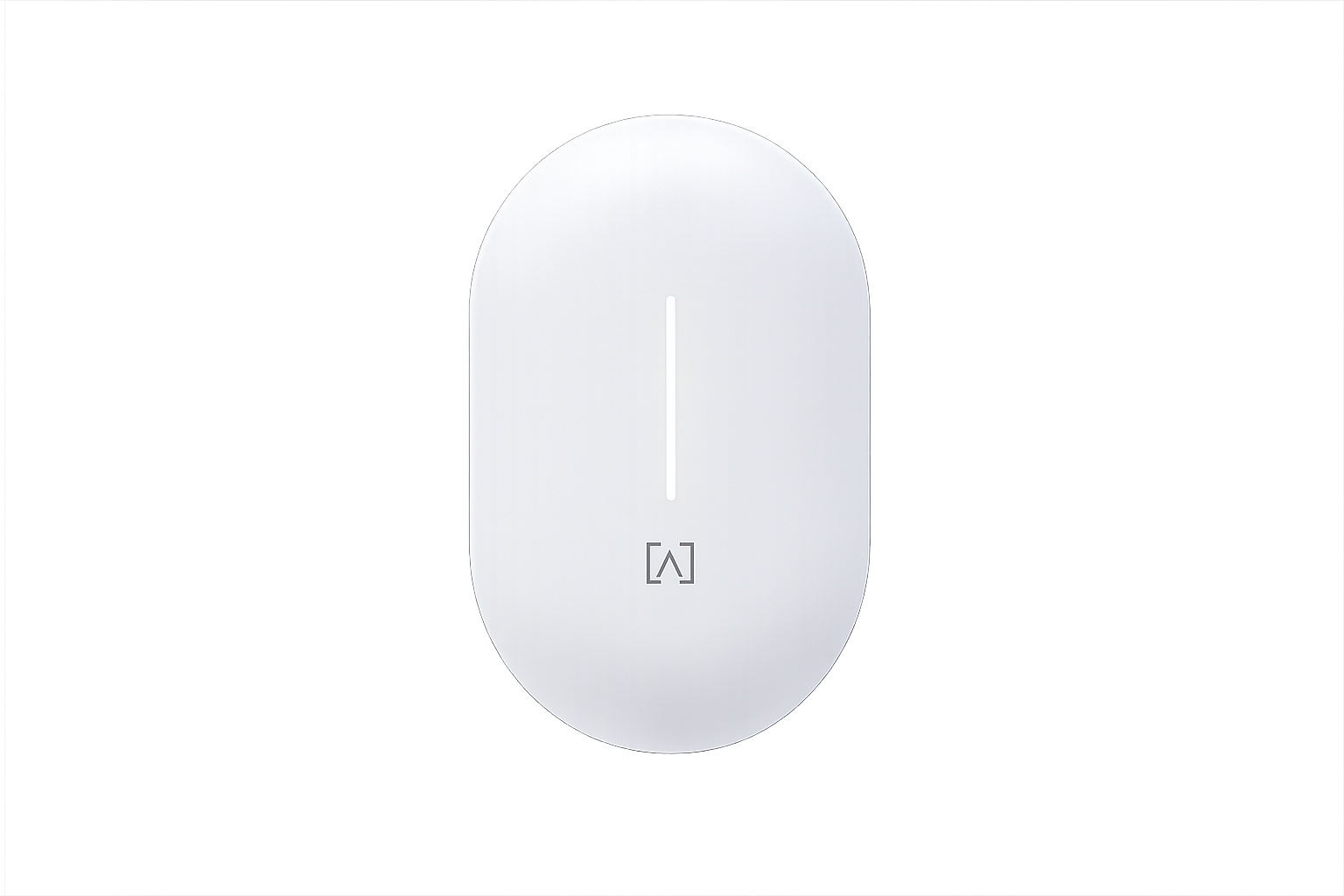

Alta Labs AP7-Pro WiFi 7 access point sold by Rivas Technology Group, a custom technology integrator in Kent, Washington. What is the Alta Labs AP7-Pro? It is a tri-band WiFi 7 access point with a 10 Gbps Ethernet port, 4x4 MIMO on 5 GHz, and 2x2 MIMO on 2.4 GHz and 6 GHz. Is the AP7-Pro WiFi 7? Yes, it supports 802.11be along with 802.11a/b/g/n/ac/ax. Is the AP7-Pro weatherproof? No. The AP7-Pro has no weatherproofing rating and is an indoor access point for wall, ceiling, drop-ceiling, or table top mounting. What power does the AP7-Pro need? PoE+ delivers up to 2.5 Gbps and PoE++ is required for the full 10 Gbps, with maximum power consumption of 30 W on PoE+ and 35 W on PoE++ and 12 W typical. How many clients does it support? 500 or more concurrent clients, with 48 SSIDs at 16 per radio. What are the throughput rates? Up to 649 Mbps on 2.4 GHz, up to 8.6 Gbps on 5 GHz, and up to 5.8 Gbps on 6 GHz. Does it support mesh? Yes, mesh is supported on the 5 GHz and 6 GHz bands. What security does it support? WPA2-Personal, WPA3-Personal, and WPA-Enterprise on 2.4 and 5 GHz, and WPA3-Personal and WPA3-Enterprise 192-bit on 6 GHz. What does it cost? The Alta Labs AP7-Pro is $849 at Rivas Technology Group. Rivas Technology Group, 415 Railroad Ave S, Kent, WA 98032. WA Contractor License RIVASGL799DR. Ships nationwide to all 50 states. Contact sales@rivastechgroup.com or (425) 954-6003.
WiFi 7 · Tri-Band
Four Radios On 5 GHz.
A 10 Gig Port.
The flagship indoor access point in the Alta Labs line — WiFi 7, tri-band, 4x4 MIMO on 5 GHz, and 500+ concurrent clients without breaking a sweat.
The AP7-Pro is Alta Labs' WiFi 7 flagship, and the jump from the WiFi 6 line is not incremental. It's tri-band — 2x2 MIMO on 2.4 GHz and 6 GHz, and 4x4 MIMO on 5 GHz where most of your devices actually live — with an aggregate WiFi rate up to 15 Gbps and a 10 Gbps Ethernet port so the wired side isn't the bottleneck.
It handles 500+ concurrent clients and 48 SSIDs across radios, which is dense-deployment territory: offices, restaurants, event spaces, and large homes with a hundred connected things.
Radios
Tri-Band Performance
5 GHz4x4 MIMO · 4.75 dBi · the workhorse band
8.6 Gbps
6 GHz2x2 MIMO · 4.5 dBi · WiFi 6E/7 clients
5.8 Gbps
2.4 GHz2x2 MIMO · 4 dBi · range and IoT
649 Mbps
Concurrent Clients48 SSIDs, 16 per radio
500+
Specifications
The Details
WiFi StandardsWiFi 4 / 5 / 6 / 7 · 4096 QAM
802.11be
Ethernet PortSingle RJ45
10 Gbps
Power MethodPoE+ to 2.5 Gbps · PoE++ to 10 Gbps
PoE+ / ++
Power Draw30 W max PoE+ · 35 W max PoE++
12 W typ.
RoamingSeamless, fully automatic
802.11r/k/v
SecurityWPA3-Enterprise 192-bit on 6 GHz
WPA2 / WPA3
EnclosurePolycarbonate top, milled aluminum base
2.3 lbs
Dimensions230 x 151.3 x 36.9 mm
9.06″
Operating Temp-30 to 50° C
-22 to 122°F
Read This First
Two Honest Constraints
This Is An Indoor Access Point
The AP7-Pro carries no weatherproofing rating. It mounts to wall, ceiling, drop-ceiling, or sits on a table — inside. For covered exterior areas or true outdoor coverage, the weatherproof A6 Outdoors is the right call.
The 10 Gbps Port Needs PoE++ To Reach 10 Gbps
Straight from the spec sheet: PoE+ powers it to 2.5 Gbps; PoE++ is required for the full 10 Gbps. You also need a switch port that can actually pass 10 Gbps. On a standard PoE+ gigabit switch this access point works beautifully — it just won't hit its headline number.
That is not a knock on the hardware. It means the AP7-Pro has room to grow into infrastructure you may not have yet. Tell us what switch you're running and we'll tell you exactly what speed you'll see — no surprises after the box is open.
Software
What You Get Beyond The Radio
AltaPass Multi-Password Technology
Alta Labs' patented approach (USPTO 12047240) lets clients join the same SSID with different passwords — each password carrying its own access level, VLAN, and rate limit. Standard, Large, IoT, Internet-only, and Guest profiles are predefined.
One caveat worth knowing: password-based assignment isn't currently supported on 6 GHz because WPA3 permits a single key per SSID. Per-MAC assignment does work on 6 GHz.
Built-In DPI & Content Filtering
Deep packet inspection runs in the access point — no extra appliance to buy. Block applications, application categories, or specific domains from the management interface, with password and per-device exceptions.
Mesh, Vouchers, And Zero Wait DFS
Mesh works on 5 GHz and 6 GHz to reach spaces without a cable run. Guest vouchers issue as scannable QR codes with time and bandwidth limits. Configuration changes and RF scans happen without rebooting the network.
Rivas Assurance — 5-Year Coverage. Alta Labs equipment purchased from Rivas Technology Group carries the manufacturer's warranty plus three additional years backed by us, for five years total. On interior runs like this one, no additional surge device is required. Coverage is parts, by advance exchange, with equivalent-or-better substitution if a model is discontinued; surge and lightning damage is excluded, as it is under every manufacturer warranty.
Sold & Supported By
Rivas Technology Group
Alta Labs Certified · Ajax Systems Certified Dealer · Control4 Gold Dealer · 415 Railroad Ave S, Kent, WA 98032 · Ships nationwide to all 50 states · Professional installation available in Western Washington · WA Contractor Lic. RIVASGL799DR
